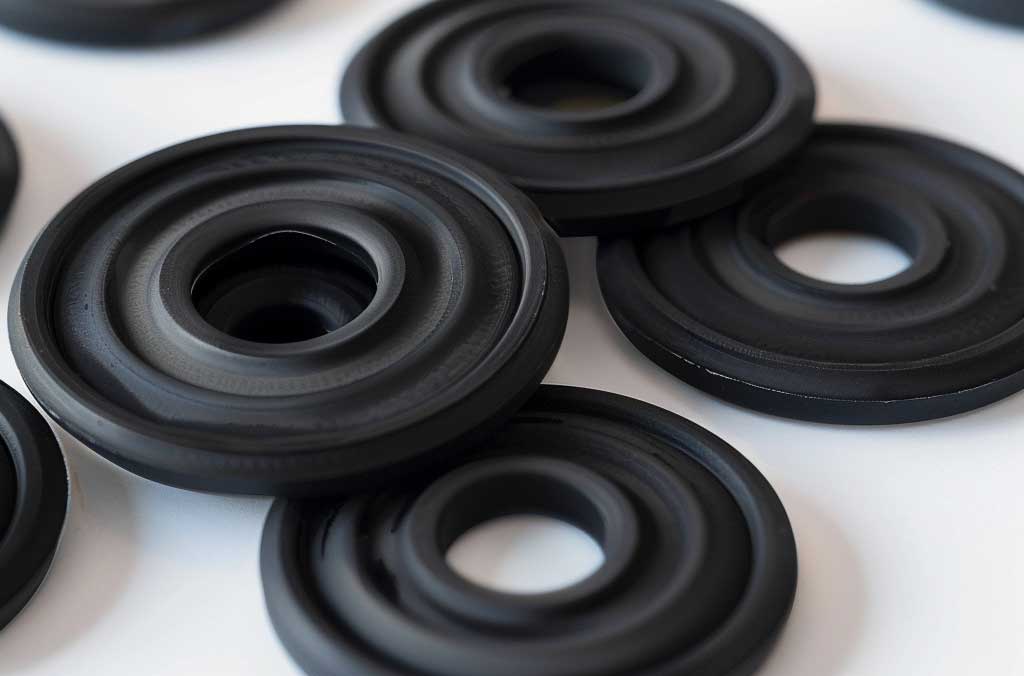

Component reliability is top priority for any manufacturer. However, when designing and engineering for harsh environments, reliability is more critical than ever. When there are fluctuating pressures, aggressive chemicals, or temperature extremes, every component must function as designed or system failures will occur. And in these harsh environments, there are few components as critical, and as overlooked, as the convoluted diaphragm.

Convoluted diaphragms are uniquely suited for harsh environments due to their flexibility. Their accordion-style shape also allows for precise movement, and their long-term durability make them a perfect choice for components across various industries and applications. However, even the best design can fail without the right manufacturing partner behind it.

Let’s talk about what to look for when selecting a convoluted diaphragm manufacturer, especially for harsh environments.

1. Proven Experience in Industries Known for Harsh Environments

Applications such as chemical dosing pumps, HVAC pressure regulators, and medical oxygen equipment require convoluted diaphragms. These diaphragms need to be able to withstand repeated flexing, temperature cycling, and corrosive exposure without losing shape or seal.

Look for a manufacturer with a successful track record in industries like:

• Water Treatment
• Industrial Controls
• Medical and Life Sciences
• Automotive and Heavy Equipment
• Oil & Gas

Ask about specific projects and how their diaphragms have performed over time in challenging field conditions.

2. Material Expertise Beyond the Basics

Material selection is the foundation to success. An experienced convoluted diaphragm manufacturer will go beyond “off-the-shelf” rubber and plastic compounds. They’ll help you weigh factors like:

• Chemical resistance to acids, fuels, and solvents
• Temperature range (especially critical for outdoor or process-intensive equipment)
• Elasticity and memory to ensure long-term flex performance
• Compliance needs such as FDA, NSF, WRAS, USP Class VI, or RoHS

Look for manufacturers that offer a full range of elastomers (EPDM, FKM, silicone, etc.) and thermoplastics, plus proprietary blends for other applications.

3. Custom Engineering and In-House Tooling Capabilities

One size does not fit all when it comes to convoluted diaphragms. A custom engineered convoluted diaphragm will likely be what you need to enhance product lifespan, performance, and safety. An experienced manufacturer will be able to:

• Design and model convolution geometry to suit your stroke and cycle needs.
• Rapidly prototype and test iterations by building prototype tooling in-house.
• Build tooling in-house or with toolmakers specializing in this type of product to speed up development and control tolerances.

Ask if they offer finite element analysis (FEA) or fatigue testing. This is especially important for validating design under long-term load conditions.

4. Quality Certifications and Testing Rigor

Durability is key in harsh conditions, and it starts with a strong internal quality system. Does the manufacturer meet or exceed ISO 9001 standards? What testing protocols are in place to ensure repeatable performance?

When speaking with the manufacturer, look for:

• Burst and leak testing
• Cycle-life testing
• Lot traceability
• Inspection reports and documentation for regulated industries

These quality processes should be transparent and, if you’re in a highly regulated industry, audit-ready.

5. Collaborative Support from Concept to Production

You want more than just components from your manufacturer. You want a partner, a team that understands your business needs and what it takes to operate efficiently.

Choose a convoluted diaphragm manufacturer that will:

• Communicate openly during early design discussions.
• Suggest cost-effective alternatives without sacrificing durability.
• Offer production flexibility for both short runs and scaling.
• Stand behind their work with data-backed performance insights.

Choose Gulf as Your Convoluted Diaphragm Manufacturer

The right convoluted diaphragm manufacturer can make or break its application in harsh environments. The right manufacturer will ensure that your components are built, tested, and delivered to meet the challenges you face.

At Gulf, we specialize in custom design and manufacturing of convoluted diaphragms for extreme applications. We are backed by decades of experience and a team dedicated to precision, performance, and partnership.

Let’s talk about how we can help you engineer a better diaphragm for the toughest conditions.
